HXE12P01B

 Single-phase Energy Metering IC integrated LCD driver and enhanced 8051 Microcontroller

» Description

The HXE12P01B is a low-cost,high-performance single-phase energy metering SOC chip, and integrated single-phase energy metering, LCD driver, Calendar clock and enhanced 8051 microcontroller.

The HXE12P01B embedded energy metering module, to measure active, reactive and apparent energy, as well as voltage/current rms. And then to monitor the voltage sag of the power line and zero-crossing features.

The HXE12P01B is a fast 8051 compatible micro-controller with a redesigned CPU of no wasted clock and memory cycles.Typically, it will be faster and exhibit better performance than the traditional 8051 at the same oscillator frequency.

The HXE12P01B retains most features of the standard 8051. These features include internal 256 bytes RAM, two 16-bit timers / counters, three UART, and external interrupt INT0, INT1. In addition, the HXE12P01B provides external 2816 bytes RAM(not include LCD RAM), two 12-bit PWM outputs, external interrupt INT2&3, 16-bit timer/counter (Timer2) compatible with 8052. It contains a 64K Bytes Flash memory block for program and data.

Some standard serial communication modes such as EUART、IR are supported in HXE12P01B. Also the LCD driver, ADC and RTC are incorporated in HXE12P01B.

For high reliability and low cost issues, the HXE12P01B builds in PLL clock, Watchdog Timer, Low Voltage Reset function, and oscillator fail detection. G80F925 also supports two power supply modes and three power saving modes to reduce powerconsumption.

» Features

n   8051 compatible Pipe-lined instruction based on the single-chip 8-bit micro-controller

n   5 channels 10-bit Analog to Digital Converter (ADC) with built-in compare function

n   Flash ROM: 64K Bytes

n   EUART0,EUART1 (built-in IR), EUART2

n   RAM: internal 256 Bytes and external 2816 Bytes

n   Built-in Calendar clock

n   EEPROM: 2K Bytes

n   Two 12-bit PWM timers

n   Operation voltage: 2.2V - 3.8V

n   LCD driver

n   Oscillator (Code option):

- 4 COM x 32 SEG (1/4 duty 1/3 bias)

- 6 COM x 30 SEG (1/6 duty 1/3 bias)

- 8 COM x 28 SEG (1/8 duty 1/4 bias)

- fOSC=32.768kHz

- 8 levels contrast software programmable

- Build in PLL : PLL= 8.192MHz

n   Built-in low power detection (LPD)

n   46 CMOS general purpose I/O ports

n   Built-in low voltage reset (LVR) function (enabled

by code option)

LVR voltage: 2.3V

n   Built-in pull-up resistor for I/O

n   Built-in Watch Dog Timer (WDT)

n   Three 16-bit timer / counters: T0, T1 & T2

n   Warm-up timer for power-on reset

n   Powerful interrupt sources

n   CPU Machine cycle: 1 oscillator clock

- Timer0, Timer1, Timer2

- External interrupt 1, 2, 3

- EUART0, EUART1, EUART2

- RTC, LPD

- ADC, EMU, PWM

n   Energy Metering

n   Support Low power operation modes:

- IDLE Mode

- Power-Down Mode

n   Low-power Comsumption

n   Package: LQFP64 (7*7)

Active/ reactive/ apparent Energy Metering and voltage/current rms metering

Accuracy of 0.1% for active energy over a dynamic range of 2000:1.

Accuracy of 0.5% for reactive energy over a dynamic range of 1000:1.

Less than 0.5% error for voltage/ current rms

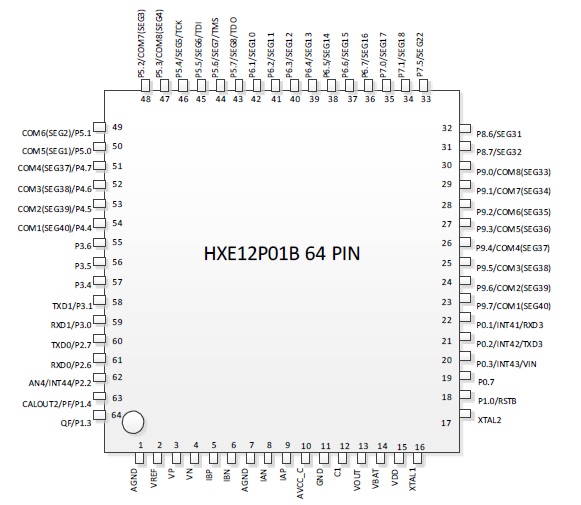

» Pin Configuration









» Order Infomation

Part

Number

FLASH

RAM

DATA

FLASH

I/O

MAX

TIMER

INT

ADC

EUART

LCD

Other

Temp

range

package

HXE12P01B

64K

3072

2K

46

3*16

4

5*10

3

4 X 28

6 X 26

8 X 24

RTC/EMU

/LPD/LVR/WDT

-40℃~+85

LQFP64

DataSheetHXE12P01B Rev1.00.pdf
